9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

29 - Engine 6081HH026-RE529077

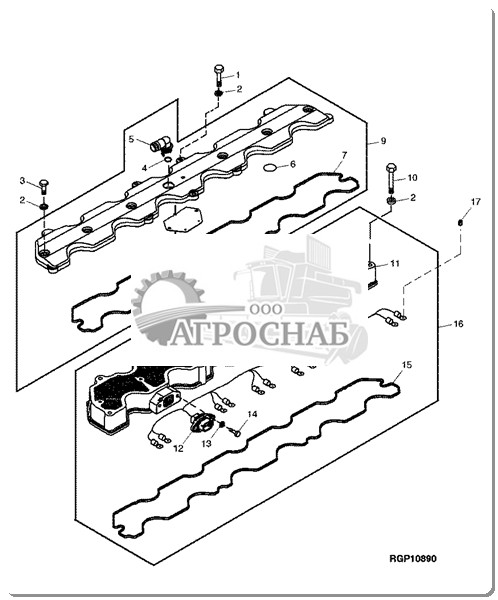

1102 Rocker Arm Cover

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 19H2151 Cap Screw 2 1/4" X 3"
2 24H1286 Washer 15 9/32" X 1/2" X 1/16"
3 19H1914 Cap Screw 7 1/4" X 1"
4 R72328 O-Ring 1
5 R120467 Elbow Fitting 1
6 R504093 Seal 4
7 R502598 Seal 1
8 37H26 Screw 5 0.116" X 1/4"
9 RE505094 Valve Cover 1
10 19H2334 Cap Screw 6 1/4" X 2-1/2"
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R502695 Housing 1
12 RE509048 Wiring Harness 1 INCLUDES R520373
R520373 Seal 1
13 24H1287 Washer 2 9/32" X 5/8" X 0.065"
14 19H2036 Cap Screw 2 1/4" X 7/8"
15 R502719 Seal 1
16 RE509265 Housing 1
17 R134920 Nut 12

1310 Crankshaft Damper / Front Seal

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE54073 Seal 1 FRONT
2 R522160 Screw 8
3 RE505520 Pulley With Dampener 1 - 053079
RE523266 Pulley With Dampener 1 053080 -
R519753 Spacer 1 - 053079
4 R501561 Spacer 1
5 19M7818 Screw 6 M12 X 80

1496, 1499 FLYWHEEL HOUSING

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 19H2117 Cap Screw 6 5/16" X 1-1/8"
2 T27860 Washer 6
3 R125027 Housing 1
4 RE520036 Seal 1
5 R522768 Gasket 1 (SUB FOR R520504)
6 R121929 Plug 1

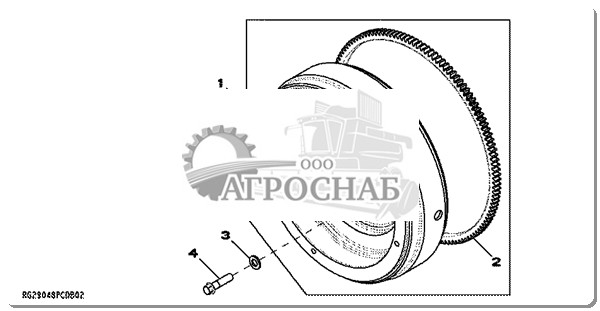

1519 Flywheel

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE502510 Flywheel 1 SUB FOR RE57733; MARKED R501414
2 R28811 Ring Gear 1 z = 129
3 T21242 Washer 6
4 R79850 Cap Screw 6 SUB FOR R93238

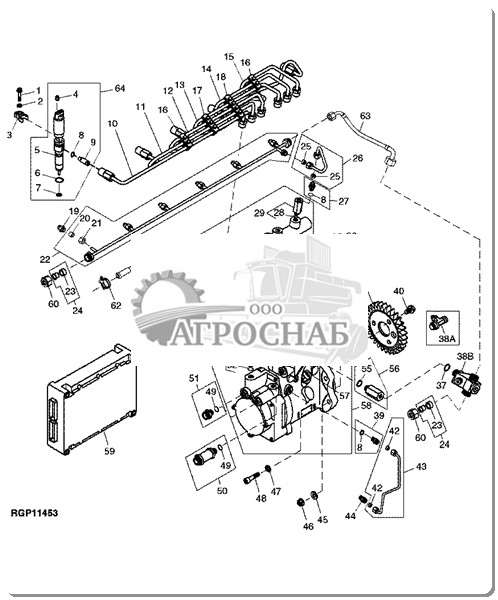

FUEL INJECTION PUMP, LUBE LINE AND ENGINE CONTROLLER

key PART NO. PART NAME QTY SERIAL NO. REMARKS
40 19M7783 Screw 3 M10 X 16
41 R504089 Gear 1 Z= 30
42 R67264 Packing 2
43 RE504156 Oil Line 1
44 R76822 Fitting 1 7/16"-24UNS X 1/8"-27NPT
45 24M7239 Washer 3 10.700 X 21 X 2.500 mm
46 14H1090 Nut 3 3/8"
47 24H1652 Washer 1 13/32" X 11/16" X 7/64"
48 19H3124 Screw 1 3/8" X 1-1/2"
49 51M7095 O-Ring 3 11.300 X 2.200 mm
key PART NO. PART NAME QTY SERIAL NO. REMARKS
50 RE508670 Check Valve 1 - 232462
RE520978 Check Valve 1 232463 -
51 RE503058 Adapter Fitting 2 - 232462
RE522616 Fitting 2 232463 -
52 R515456 Washer 1
53 RE515638 Hand Primer 1
54 R515457 O-Ring 1 99 X 3 mm
55 51M7095 O-Ring 1 - 232462
56 RE518420 Valve 1 - 232462
57 ...... Sensor 1 (ORDER RE518423 OR RE521422)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
58 RE501640 Fuel Injection Pump 1 - 220765
RE518423 Fuel Injection Pump 1 220766 - 232462
RE521422 Fuel Injection Pump 1 232463 -
SE501918 Fuel Injection Pump Reman 1 220766 - 232462
SE501920 Fuel Injection Pump Reman 1 232463 -
59 RE508773 Engine Controller 1 - 217606
SE502807 Engine Controller Reman 1 (A) 12/24V, REMAN FOR RE508773
RE522515 Engine Controller 1 217607 -
60 R63552 Tube Nut AR - 232462
38H1415 Fitting AR 232463 -
key PART NO. PART NAME QTY SERIAL NO. REMARKS
61 RE523825 Adapter Fitting 1 232463 -
62 AR77962 Hose Clamp 1 232463 -
63 RE521477 Fuel Line 1 232463 -
64 RE524369 Injection Nozzle 6 - 217606
RE524362 Injection Nozzle 6 217607 - 233485
RE524361 Injection Nozzle 6 233486 -

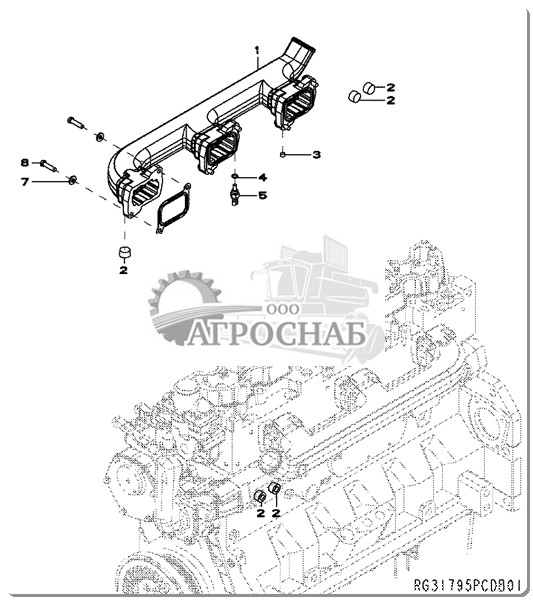

1733, 1744 INTAKE MANIFOLD

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R503926 Intake Manifold 1
2 15H690 Pipe Plug 1 3/4"
3 RE71255 Pipe Plug 1
4 51M7041 O-Ring 1 11.300 X 2.200 mm
5 RE61812 Sensor 1
6 R130573 Gasket 3
7 24H1682 Washer 6 13/32" X 7/8" X 0.120"
8 19H1651 Cap Screw 6 3/8" X 1-1/2" (ORDER 19H2633)
19H2633 Cap Screw 6 3/8" X 1-1/2"

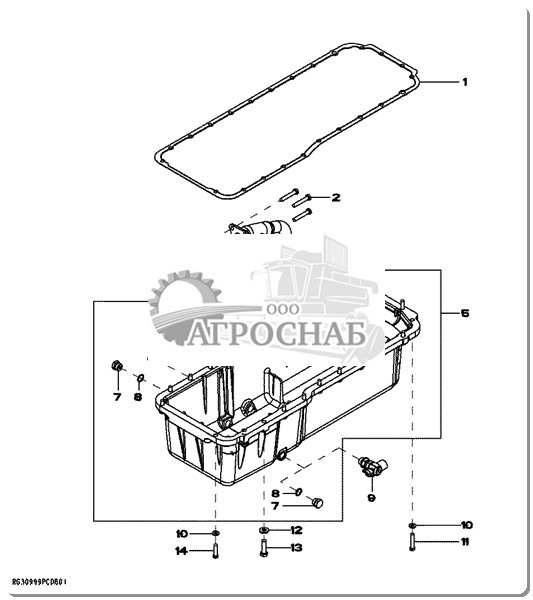

1902, 1944 OIL PAN

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R521228 Gasket 1 (SUB FOR RE504822)
2 19M9399 Cap Screw 3 M10 X 60
3 RE520585 Oil Pump Intake 1
4 R100569 Gasket 1
5 RE506165 Oil Pan 1 (ORDER RE506166)
RE506166 Oil Pan 1 (MARKED R500354 OR R500355)
6 15H690 Pipe Plug 1 3/4"
7 R27474 Drain Plug 1
8 R47151 O-Ring 1
9 RE509097 Drain Valve 1 7/8"
key PART NO. PART NAME QTY SERIAL NO. REMARKS
10 24M7239 Washer 22 10.700 X 21 X 2.500 mm
11 19H3485 Cap Screw 4 3/8" X 2"
12 R135895 Washer 2
13 19H2473 Cap Screw 2 1/2" X 1-3/4"
14 19H1651 Cap Screw 18 3/8" X 1-1/2" (ORDER 19H2633)
19H2633 Cap Screw 18 3/8" X 1-1/2"

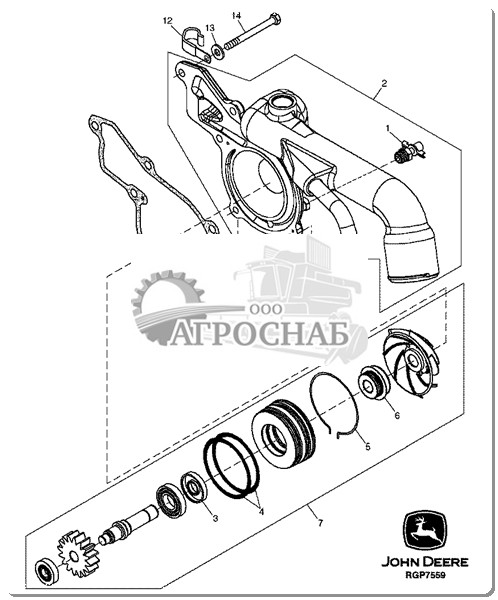

2014, 2016 WATER PUMP

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 AT13740 Drain Valve 1
2 RE509328 Cover 1 (MARKED R503425)
3 RE39134 Seal 1
4 ...... O-Ring 1 (ORDER RE509463)
...... O-Ring 1 (ORDER RE509463)
5 R121316 Ring 1 (RETAINING)
R26976 O-Ring 1
6 RE521496 Seal Kit 1 (SUB FOR RE68318)
7 RE521502 Pump Kit 1 (16 TOOTH GEAR), (MARKED R503501 ) (SUB FOR RE509598 OR RE532596)
SE501596 Water Pump Reman 1 (REMAN FOR RE521502)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
RE521503 Pump Kit 1 (15 TOOTH GEAR), (MARKED R503501 ) (SUB FOR RE509599 OR RE532595)
SE501595 Water Pump Reman 1 (REMAN FOR RE521503)
8 19H3411 Screw 2 3/8" X 1-1/8"
9 19H1897 Cap Screw 1 5/16" X 3-3/4"
10 24H1136 Washer 1 11/32" X 11/16" X 0.065"
11 R119383 Gasket 1
12 AH89557 Clip 1
13 24M7096 Washer 3 10.500 X 18 X 1.600 mm
14 19H3445 Cap Screw 3 3/8" X 3-3/4"

2105 Thermostat Cover ( - 296186)

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 AH89557 Clip 1
2 R63845 Washer 1
3 19H3772 Screw 1 3/8" X 1-3/4"
4 19H3683 Screw 2 3/8" X 1-1/2"
5 R86007 Cover 1 SUB FOR RE502570
6 R124607 Gasket 1 USE WITH R86007
7 RE502570 Cover 1 INCLUDES R136151
8 R136151 Seal 1 USE WITH RE502570

2120 Thermostat Cover (296187 - )

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R86007 Cover 1
2 R63845 Washer 1
3 AH89557 Clip 1
4 19H3772 Screw 1 3/8" X 1-3/4"
5 19H3683 Screw 2 3/8" X 1-1/2"

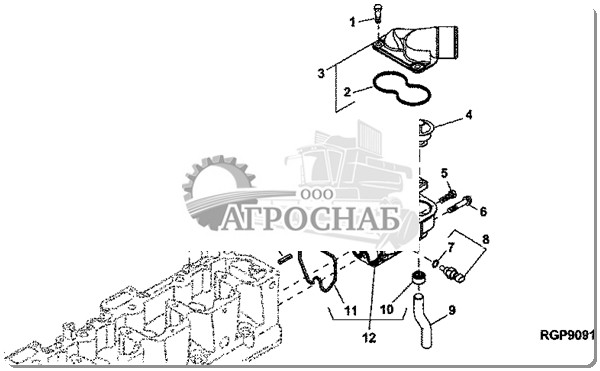

2201 Thermostat ( - 296186)

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 T53268 Screw 3
2 R124607 Gasket 1
3 RE502569 Cover 1
4 AR48675 Thermostat 2
5 19H3771 Screw 2 3/8" X 1" HS SAE 8
6 19H3773 Screw 1 3/8" X 2"
7 51M7041 O-Ring 3 11.300 X 2.200 mm
8 RE48419 Sensor 1
9 R505514 Tube 1
10 RE57190 Seal 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R136063 Seal 1
12 RE509855 Housing 1 (MARKED R505455)
13 34H329 Spring Pin 1 5/16" X 1-1/4"
14 15H691 Pipe Bushing 1 1/8"

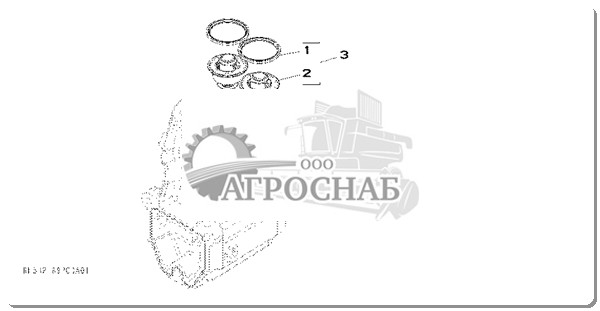

2209 Thermostat (296187 - )

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R521548 Seal 1
2 RE69581 Thermostat 1
3 RE532226 Thermostat 2 (INCLUDES R521548 AND RE69581)

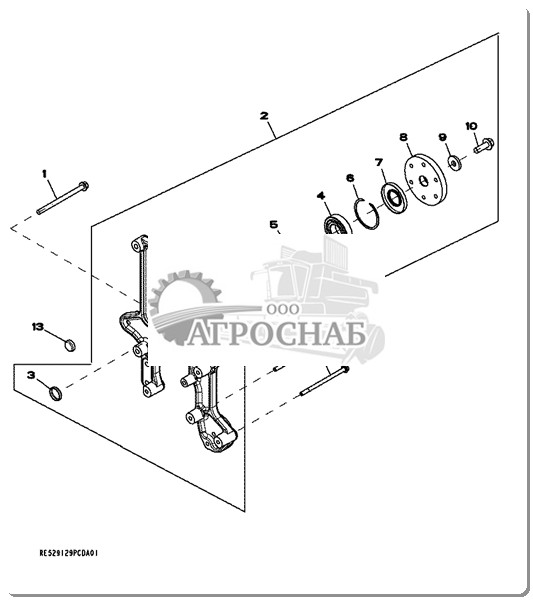

2342 FAN DRIVE

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 19H3711 Screw 1 3/8" X 5-1/2"
2 RE523316 Plate 1
3 R116466 Plug 1
4 JD10329 Ball Bearing 2
5 R516996 Shaft 1
6 R62191 Snap Ring 1
7 RE20768 Seal 1
8 R135996 Hub 1
9 24M7226 Washer 1 13 X 35 X 5 mm
10 19M7790 Screw 1 M12 X 35
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R112273 Screw 1
12 R135737 Screw 4
13 N102039 Plug 1 (SUB FOR A3910R)

2818 Exhaust Manifold

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R127425 Exhaust Manifold 1 209276 -
2 R122595 Ring 2 209276 -
3 R127426 Exhaust Manifold 1 209276 -
4 RE62777 Gasket 2 209276 -
5 RE62776 Gasket 2 209276 -
6 R63845 Washer 8 209276 -
7 19H3031 Cap Screw 4 209276 -
19H3267 Cap Screw 4 209276 -

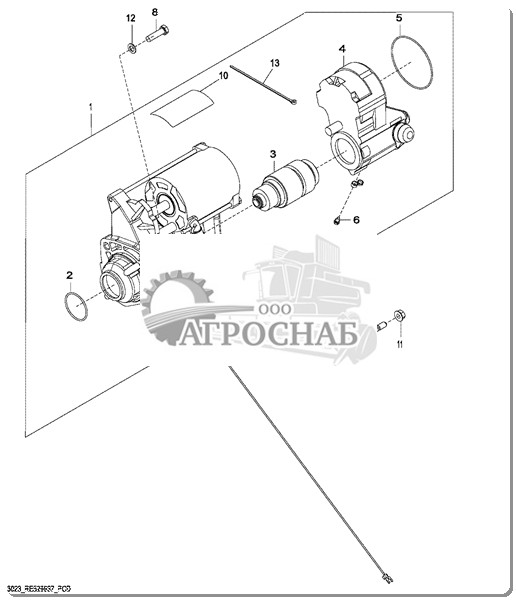

3023 Starter Motor

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE529661 Starter Motor 1 12 V
SE501867 Starter Motor Reman AR REMAN FOR RE529661
2 R135510 O-Ring 1
3 RE530311 Clutch 1
4 RE530310 Switch 1
5 R135509 O-Ring 1
6 RE71256 Screw With Washer 1
7 R515224 Stud 1
8 19H3219 Cap Screw 2 3/8" X 1-3/8"
9 AH155483 Wiring Lead 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
10 T146102 Label 1 (A)
T146106 Safety Sign 1 (B)
T146104 Safety Sign 1 (C)
T146515 Safety Sign 1 (D)
T146516 Safety Sign 1 (E)
11 E55662 Flange Nut 1
12 24H1303 Washer 2 13/32" X 11/16" X 0.065"
13 R96703 Tie Band 1

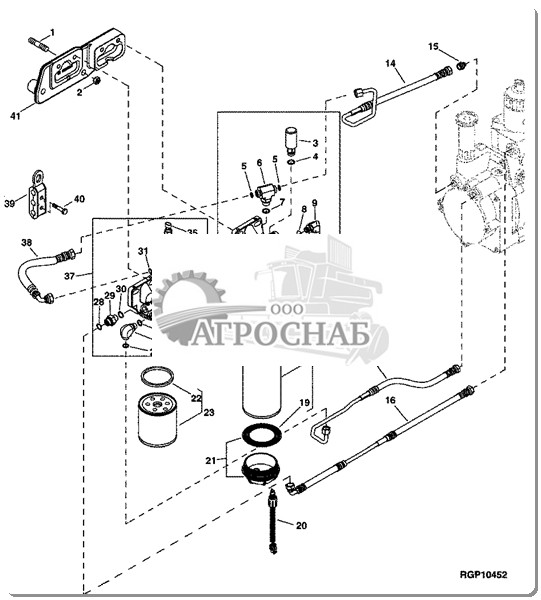

3510 Fuel Filter

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R504516 Stud 2
2 14H1059 Nut 2 7/16"
3 RE523578 Diagnostic Coupling 1
4 51M7096 O-Ring 1 13.300 X 2.200 mm
5 R63548 O-Ring 2
6 RE522143 Adapter Fitting 1 (INCLUDES 51M7096 AND (2) R63548)
7 51M7096 O-Ring 1 13.300 X 2.200 mm
8 R63548 O-Ring 1
9 RE520968 Check Valve 1 (INCLUDES R63548 AND 51M7096)
10 51M7096 O-Ring 1 13.300 X 2.200 mm
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 51M7095 O-Ring 1 11.300 X 2.200 mm
12 RE522144 Drain Plug 1 (INCLUDES 51M7095)
13 RE520967 Filter Head 1
14 RE520972 Fuel Line 1
15 R518563 Hose Guard 1
16 RE520981 Fuel Line 1
17 RE520975 Fuel Line 1 (INCLUDES R518563)
18 R519483 Packing 1
19 ...... Packing NA
20 RE522685 Sensor 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
21 ...... Sediment Bowl NA
22 R519483 Packing 1
23 RE522688 Fuel Filter 1 2 MICRON, (MARKED RE522684) (FINAL FILTER )
24 19H3693 Screw 4 3/8" X 1-1/4"
25 R63548 O-Ring 1
26 RE522145 Adapter Fitting 1 (INCLUDES R63548 AND 51M7096)
27 51M7096 O-Ring 1 13.300 X 2.200 mm
28 R63548 O-Ring 1
29 RE522518 Fitting 1 (INCLUDES R63548 AND 51M7096)
30 51M7096 O-Ring 1 13.300 X 2.200 mm
key PART NO. PART NAME QTY SERIAL NO. REMARKS
31 R63548 O-Ring 1
32 51M7096 O-Ring 1 13.300 X 2.200 mm
33 RE520971 Control Valve 1 (INCLUDES R63548 AND 51M7096)
34 51M7041 O-Ring 1 11.300 X 2.200 mm
35 RE48419 Sensor 1
36 51M7095 O-Ring 1 11.300 X 2.200 mm
37 RE520969 Filter Head 1
38 RE521473 Fuel Line 1
39 RE509668 Clamp 1
40 19H1791 Cap Screw 2 1/4" X 1-1/4"
key PART NO. PART NAME QTY SERIAL NO. REMARKS
41 R518524 Bracket 1
42 RE522687 Fuel Filter 1 (A) (10 MICRON), (MARKED RE522689 ) (INCLUDES R519483 AND RE522686)
RE522686 Drain Valve 1

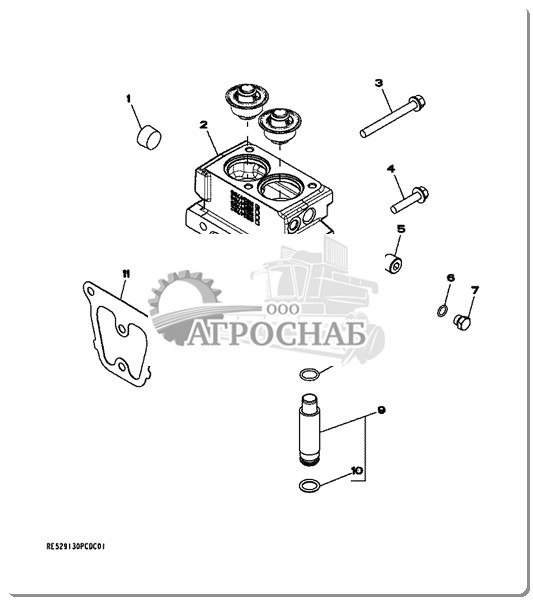

3940 THERMOSTAT HOUSING

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 15H690 Pipe Plug 1 3/4" (SUB FOR RE501736)
2 R524705 Manifold 1 (SUB FOR R519580)
3 R133998 Screw 2
4 19H3772 Screw 1 3/8" X 1-3/4"
5 RE57836 Pipe Plug 2
6 R77673 O-Ring 1
7 R27094 Drain Plug 1 (SUB FOR R82719)
8 R72328 O-Ring 1
9 RE509095 Tube 1
10 R504810 O-Ring 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R86062 Gasket 1
12 34H329 Spring Pin 1 5/16" X 1-1/4"

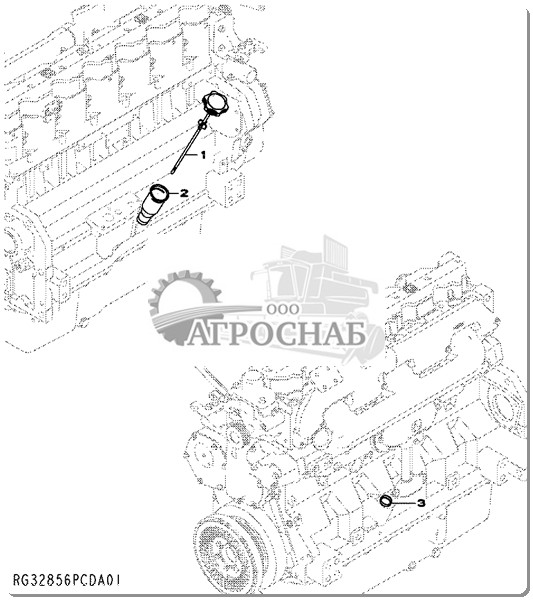

4021 Engine Oil Dipstick Tube

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE500218 Dipstick 1
2 R503983 Dipstick Tube 1
3 T35390 Plug 1

4302 STARTING AID

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 ...... Intake Manifold 1
2 R28583 Nozzle 1
3 R47160 Nozzle Holder 1
4 RE21790 Elbow Fitting 1

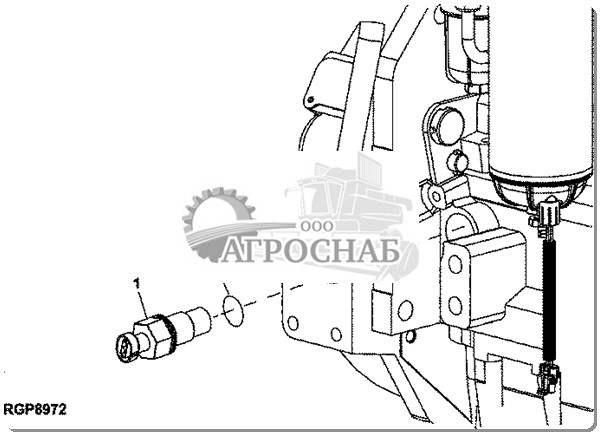

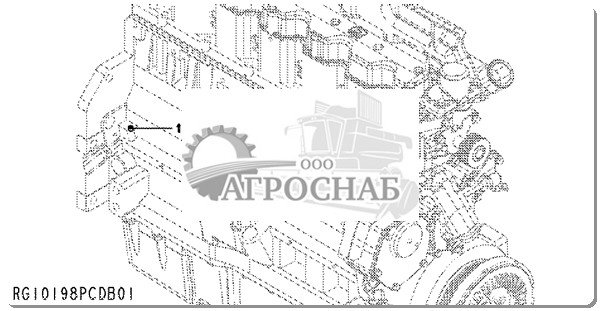

4401 Magnetic Pick-Up

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE508195 Sensor 1 (SUB RE519144) MAGNETIC PICK-UP
2 51M7044 O-Ring 1 17.300 X 2.200 mm

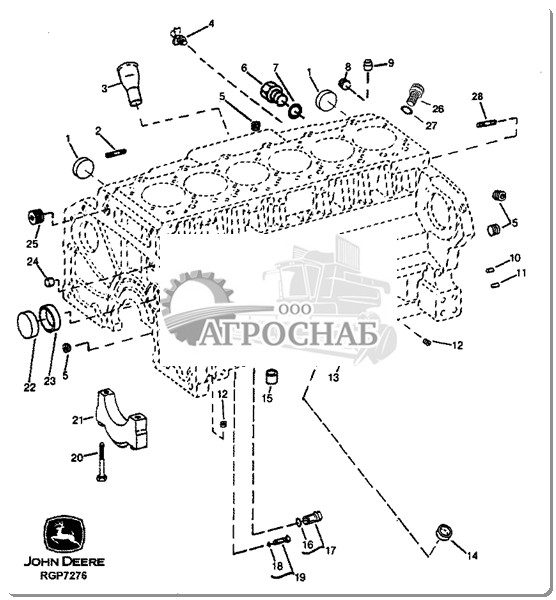

4613 Cylinder Block Fittings

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R43409 Plug 2
2 R114130 Stud 3 (A)
3 R121765 Dipstick Tube 1
4 AT13740 Drain Valve 1
5 R36599 Plug 3
RE57836 Pipe Plug 1
6 R39741 Drain Plug 1
7 U13639 O-Ring 1
8 15H690 Pipe Plug 1 3/4"
RE71255 Pipe Plug 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
9 R42340 Bushing 2
10 R1612R Dowel Pin 2
11 F1743R Dowel Pin 2
12 RE71255 Pipe Plug 6
RE71255 Pipe Plug 1
13 R43621 Orifice 6
14 T35390 Plug 1
15 R500642 Bushing 2
16 R27149 O-Ring 1
17 R121929 Plug 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
18 A4365R O-Ring 1
19 DZ104494 Plug 1 SUB FOR AR61589
20 R122364 Bolt 14
21 R120953 Bearing Cap 6 (B)
R120954 Bearing Cap 1 (C)
22 R82007 Plug 1
23 R87561 Bushing 4
24 R61288 Dowel Pin 1
25 15H562 Pipe Plug 1 1"
26 R501255 Plug 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
27 B2762R O-Ring 1
28 R114130 Stud 1
.. RE524764 Threaded Nipple 1 256768 -
.. T35390 Plug AR
.. ...... Cylinder Block NA
.. R104592 Pipe Plug 1
.. R71732 O-Ring 1

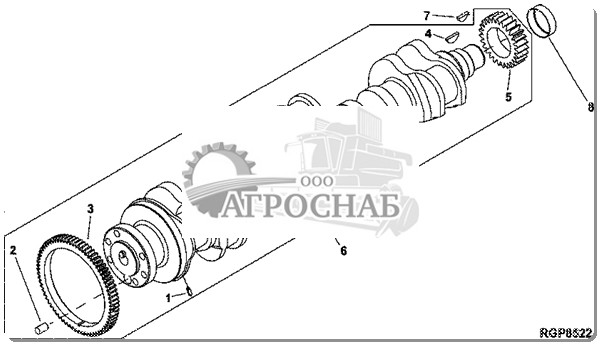

4701 Crankshaft

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 34M7089 Spring Pin 1
2 R41934 Dowel Pin 1
3 R104587 Gear 1
4 R120752 Key 1
5 R104587 Gear 1
6 RE505124 Crankshaft 1 (MARKED R120030)
7 R116311 Key 1
8 R32617 Retainer 1

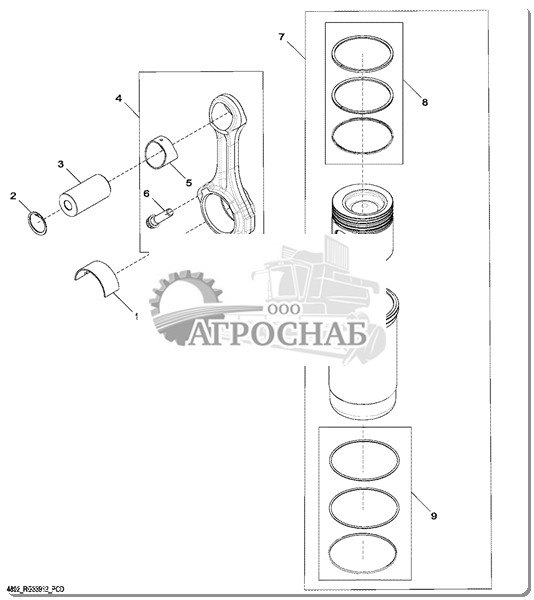

4802 Connecting Rods and Pistons

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R525767 Bearing 12
2 E1343FN Snap Ring 12
3 R57771 Piston Pin 6
4 DZ100118 Connecting Rod 6 SUB FOR RE522977 OR RE 535555; MARKED DZ100422
5 R74008 Bushing 1
6 R66452 Cap Screw 2 USE WITH R116340
R542878 Cap Screw 2 SUB FOR R501035
7 RE508156 Piston-Liner Kit 6 (A) PISTON MARKED RE516291
8 RE503528 Piston Ring Kit 1
9 AR98850 O-Ring Kit 1

4902 Valve Actuating Mechanism

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE521278 Kit 6
2 U17408 Ring 2
3 R519425 Washer 2
4 RE24045 Rocker Arm 1 (RH)
5 14H1080 Nut 1 3/8"
6 R27443 Set Screw 1
7 RE24046 Rocker Arm 1 (LH)
8 14H1080 Nut 1 3/8"
9 R27443 Set Screw 1
10 19H3833 Screw 12 5/16" X 1-3/4"
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 T20129 Cap 12
12 R85027 Push Rod 12

5002 Engine Oil Pump

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R500642 Bushing 2
2 R502773 Gear 1
3 T21242 Washer 1
4 14H826 Nut 1 1/2"
5 14H785 Nut 1 5/16"
6 22H1040 Set Screw 1 5/16" X 1-1/4"
7 R100569 Gasket 1
8 R104628 Screw 5 (USE WITH SE500877)
19M9399 Cap Screw 5 M10 X 60 (USE WITH RE507076)
9 R71732 O-Ring 1
key PART NO. PART NAME QTY SERIAL NO. REMARKS
10 RE507076 Oil Pump 1 (MARKED R504028 ) (SUB SE500877)
SE500877 Oil Pump Reman 1 (MARKED R504028) (REMAN FOR RE507076)
11 R71732 O-Ring 1
12 R524512 Oil Tube 1 (SUB FOR R116718 THIS APPLICATION)
13 R57696 Washer 4
14 19H3759 Cap Screw 2 3/8" X 1-7/8"
15 19H3219 Cap Screw 2 3/8" X 1-3/8"

5104 Cylinder Head and Valves

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 T20129 Cap 12
2 T20077 Retainer 24
3 R500098 Cap 12
4 R502187 Compression Spring 12
5 R121491 Cap Screw 7 (A) 14.275 X 202.997 mm
6 R121490 Cap Screw 8 (A) 14.275 X 174.498 mm
7 R502911 Screw 6 (A) 14.275 X 121.691 mm
8 R502912 Screw 5 (A) 14.275 X 163.703 mm
9 RE506501 Bolt Kit 1 (A)
10 15H690 Pipe Plug 11 3/4"
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R121193 Valve Seat Insert 6 (B) I
12 R84618 Intake Valve 6 STD
R93308 Intake Valve AR
R93312 Intake Valve AR
R93314 Intake Valve AR
13 R119132 Valve Seat Insert 6 (B) E
14 R84619 Exhaust Valve 6 STD
R93311 Exhaust Valve AR
R93313 Exhaust Valve AR
R93315 Exhaust Valve AR
key PART NO. PART NAME QTY SERIAL NO. REMARKS
15 RE519894 Cylinder Head 1 (MARKED R130818 OR RE506503)
SE501577 Cylinder Head Reman 1 (REMAN FOR RE519894)
16 RE55475 Engine Cylinder Head Gasket 1
17 19H2367 Cap Screw 1 5/8" X 3/4"
18 R501640 Shield 6
19 R515575 Plug 2

5706 Water Pump Inlet

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 AT13740 Drain Valve 1
2 RE509328 Cover 1 (MARKED R503425)
3 ...... Seal 1 (2000 OPTION)
4 ...... O-Ring 1 (2000 OPTION)
5 ...... Ring 1 (2000 OPTION)
6 ...... Seal Kit 1 (2000 OPTION)
7 ...... Kit 1 (2000 OPTION)
8 19H3411 Screw 2 3/8" X 1-1/8"
9 19H1897 Cap Screw 1 5/16" X 3-3/4"
10 24H1136 Washer 1 11/32" X 11/16" X 0.065"
key PART NO. PART NAME QTY SERIAL NO. REMARKS
11 R119383 Gasket 1
12 AH89557 Clip 1
13 24M7096 Washer 3 10.500 X 18 X 1.600 mm
14 19H3445 Cap Screw 3 3/8" X 3-3/4"

5903, 5940 Oil Filter/Oil Cooler

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1A R109625 Gasket 1 (USE WITH R116233)
1B R504669 Seal 2 (USE WITH RE509383 OR RE524007)
2A R116233 Adapter Fitting 1 (SUB RE524007)NLA
2B RE524007 Adapter Fitting 1 (MARKED R520491 OR R518 530 ) (SUB FOR RE509383)
3 24M7346 Washer 2 11 X 20 X 2 mm
4 R40236 Cap Screw 2
5 R126337 Oil Tube 1 (SUB R518376)
6 R524512 Oil Tube 1 (SUB FOR R116718)
7 R71732 O-Ring 2

6235 ALTERNATOR MOUNTING

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R502011 Gasket 1
2 R50393 Cover 1
3 R104861 Screw 1
4 R112268 Screw 1
5 RE518097 Belt Tensioner 1
6 R519662 Support 1
7 19M7835 Screw 2 M10 X 35
8 19M7810 Screw 1 M10 X 80

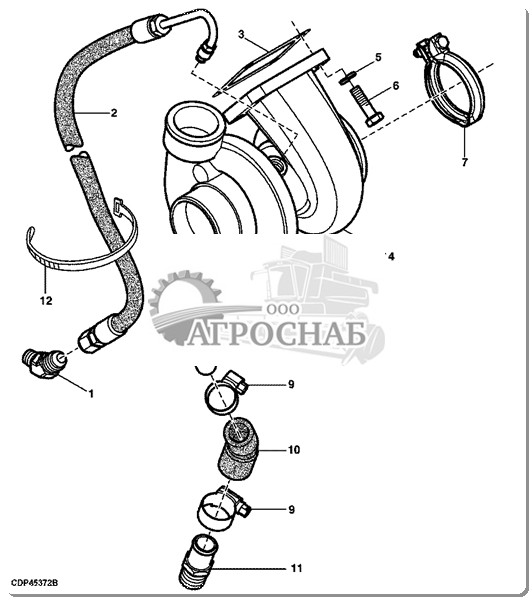

65BB Turbocharger

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 M43551 Elbow Fitting 1 1/8"-27NPTF X 1/2"-20UNF
2 RE31285 Hydraulic Hose 1
3 R90737 Gasket 1
4 RE515868 Turbocharger 1 (A)
SE502417 Turbocharger Reman 1 (REMAN FOR RE515868)
5 12M7065 Lock Washer 4 8 mm
6 19H2117 Cap Screw 4 5/16" X 1-1/8"
7 RE520493 Clamp 1
8 RE65183 Oil Line 1
9 AL37451 Clamp 2 (SUB FOR AT18904)
key PART NO. PART NAME QTY SERIAL NO. REMARKS
10 R129647 Hose 1
11 RE54885 Hose Fitting 1 1/2"-14NPTF
12 R44302 Tie Band 2

6604 Temperature Sensor

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 H163652 Fitting 1 225289 -
2 R77673 O-Ring 1 225289 -
3 AH156145 Sensor 1 225289 -

7699 Pipe Plug Oil Pressure Switch

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 RE71255 Pipe Plug 1

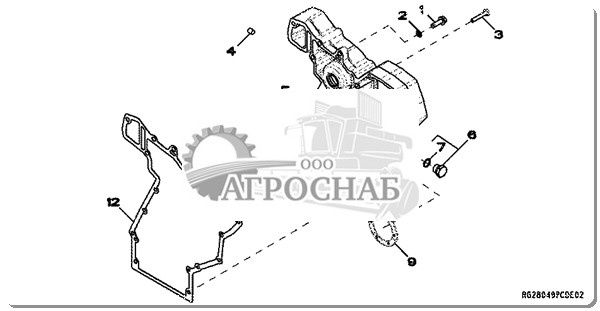

7703 Timing Gear Cover

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 19H3693 Screw 1 3/8" X 1-1/4"
2 RE517059 Washer 1
3 R115129 Cap Screw 3
4 R98527 Filter 1
5 R502083 Cover 1
6 RE517370 Fitting 1 (SUB FOR RE501938)
7 51M7044 O-Ring 1 17.300 X 2.200 mm
8 R104859 Screw 3
9 R504811 Washer 1
10 RE534261 Seal 1 - 301522
key PART NO. PART NAME QTY SERIAL NO. REMARKS
RE529775 Seal 1 301523 -
11 F1743R Dowel Pin 2
12 R119384 Gasket 1

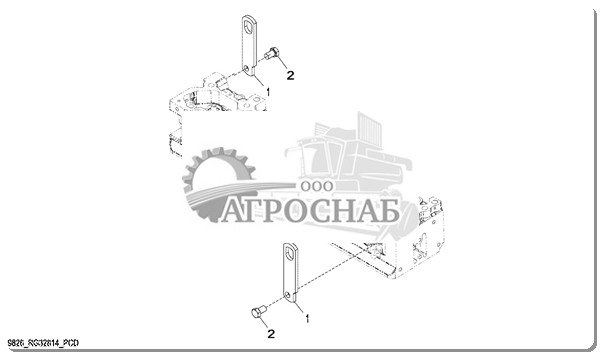

9826 Lift Straps

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 R61497 Strap 2
2 19H1916 Cap Screw 2 5/8" X 1"

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?
